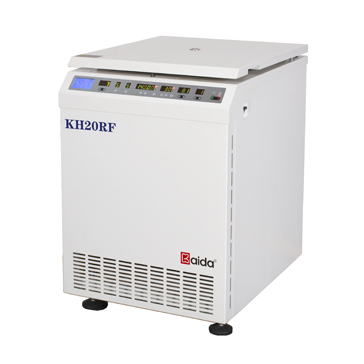

Floor Type Universal High Speed Refrigerated Centrifuge

Floor Type Universal High Speed Refrigerated Centrifuge

  1. Advanced Control System, Excellent separation

1) 10 kinds of Accel/Decel modes for selection; User can set up the operating parameter by themselves, to achieve the best centrifugal result.

2) Short running function, easy to diversify centrifugation.

3) Proprietary SCT speed control technical, high efficiency.

4) Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.

5) Timing control, the centrifugal time can be free to choose minutes or seconds, to achieve optimal centrifugation.

  1. High Safety, Ease of use

1) Automatic Rotor identification system, no need to select rotor number, avoids over-speed running, ensure safety.

2) Protection functions of over temperature, over speed, door lid lock and imbalance switch off etc, with sound and light alarm, to ensure human and instrument security.

3) Steel body, Stainless steel chamber, Steel Protective sleeve, three damping structure to prevent accidents.

4) Optional rotor with aerosol-tight lid, the rotor can be high temperature and high pressure sterilization, to prevent biological pollution.

  1. Friendly Display, Humanity Operate

1) LCD, LED multiple-screen display, the Program group, Accel/Decel, RPM/RCF, Time, Temperature are all easy to set up without any key combination.

2) Microprocessor control, operating data can be saved automatically, can start the instrument with RCF directly, 40 kinds of self-defining programs can be stored and recalled, reduce duplication of operation.

  1. Good parts, Reliable and long-lasting

1) Brushless frequency converter motor, super speed bearing and Freon-free compressor imported fromEurope, high quality.

2) Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO), extend the service life of the machine.

  1. Universal, multifunctional.

Not only support Angle rotor at high speed but also support swing rotor for big capacity & low Speed, suitable for multi-field research, production etc.

Additional information

Model

KH20RF

Max Speed

20500r/min

Max RCF

29200×g

Max Capacity

Angle Rotor: 400ml, Swing Rotor: 3000ml

Speed Accuracy

±20r/min

Temperature Range

-20℃-+40℃

Temperature Accuracy

±1℃

Time Range

1s-999min/999s

Power Supply

AC 220V 50Hz 18A

Noise

≤60dB

Dimension

760×630×920mm

Weight

150kg
